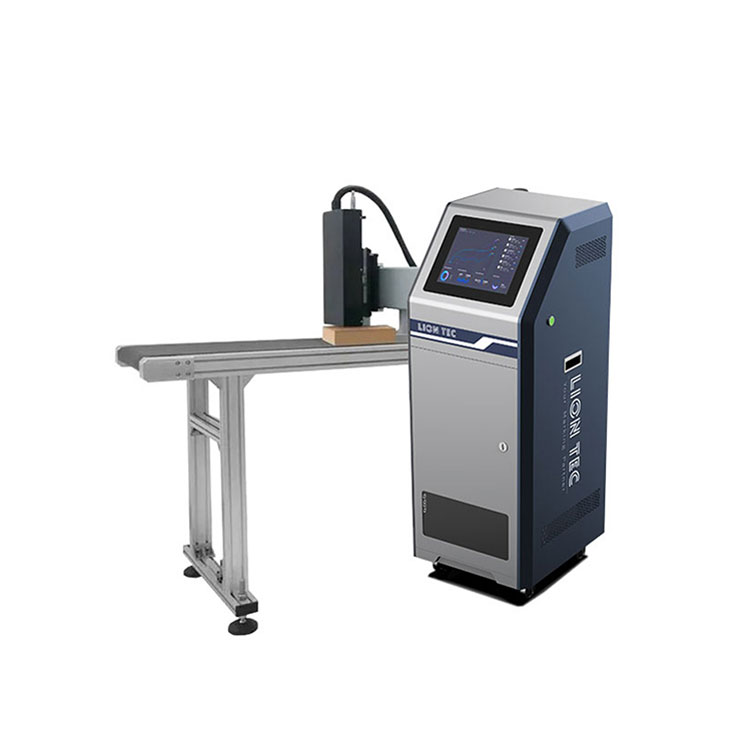

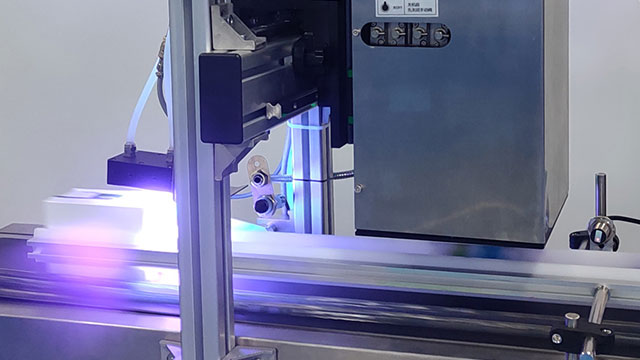

Drop on demand inkjet printers
Discover the advanced technology of UV Piezo inkjet printing, offering unparalleled precision and efficiency for various industrial applications.

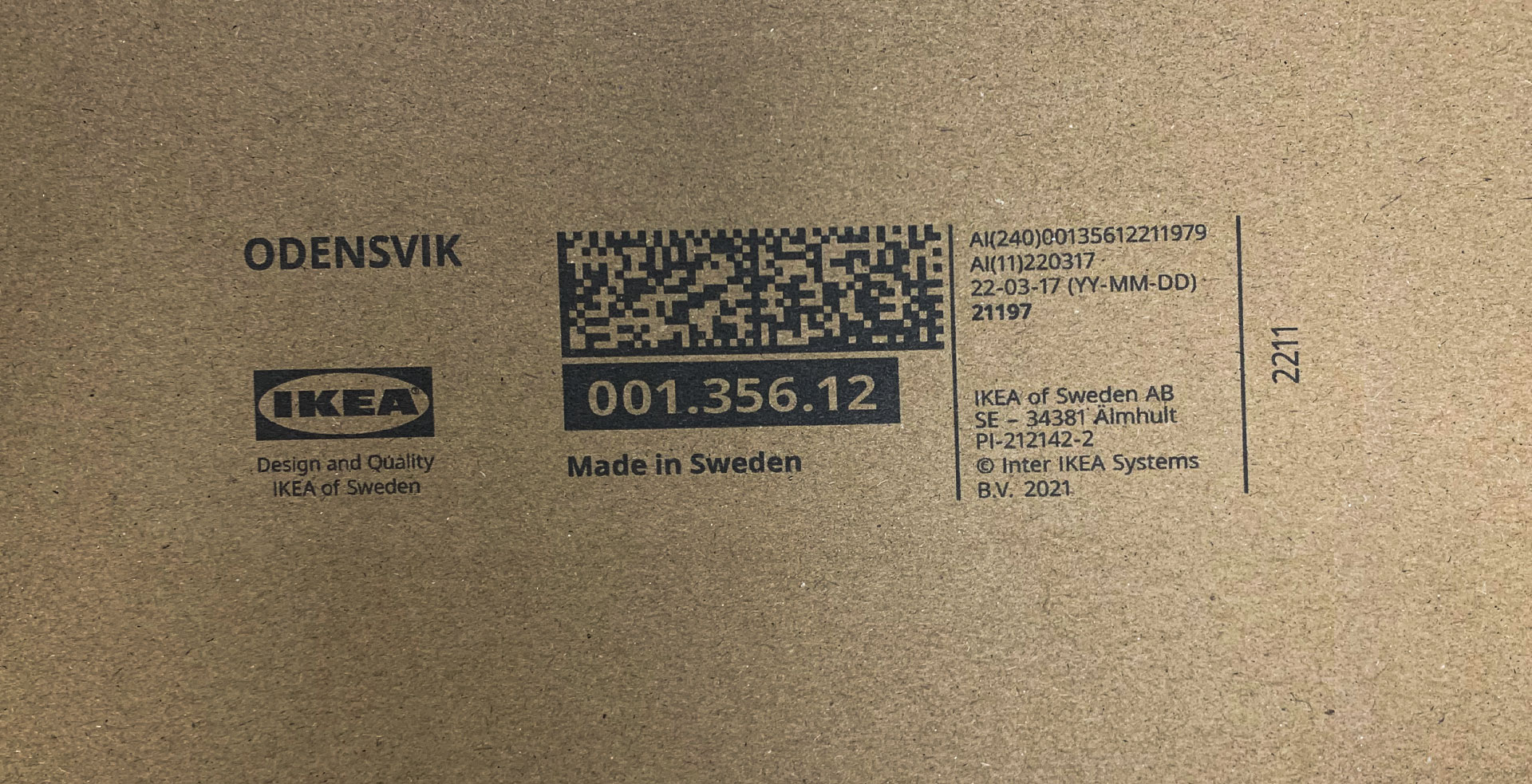

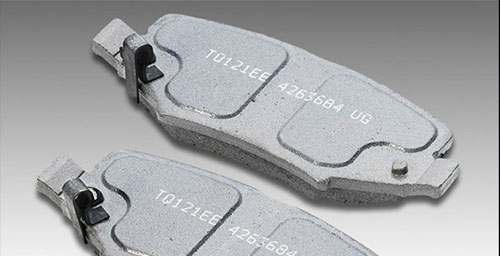

Our UV Piezo inkjet printers are a cost-effective solution to fast and contactless marking of your products and packaging!
High resolution printing
• Compared with traditional marking equipment，thephysical resolution of piezo inkjet printers can reach upto 600DPl,and other resolutions such as 180，300，and360 are available.
Excellent nozzle durability

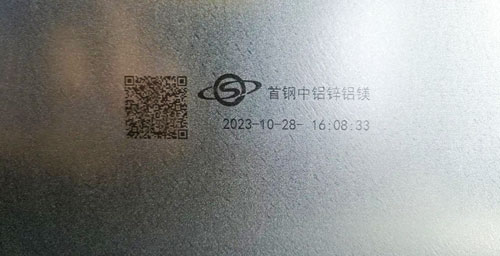

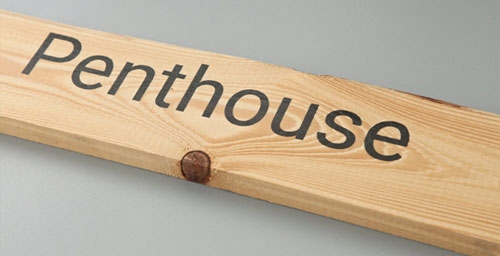

• Whether it is oil-based ink for permeable surfacematerials or UV-curable ink for non-permeable surfacematerials,because it does not contain solvents, undernormal maintenance,even if it is stopped for a longtime.the nozzleis not easv to be blocked.

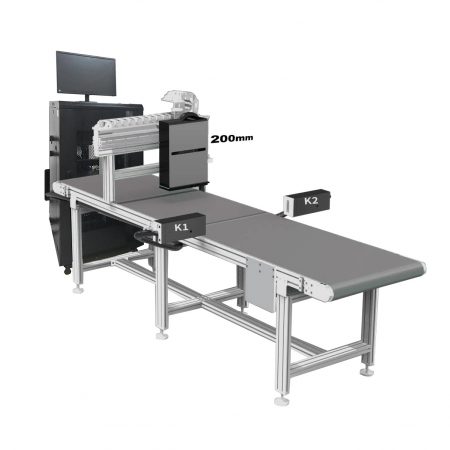

Large format printing

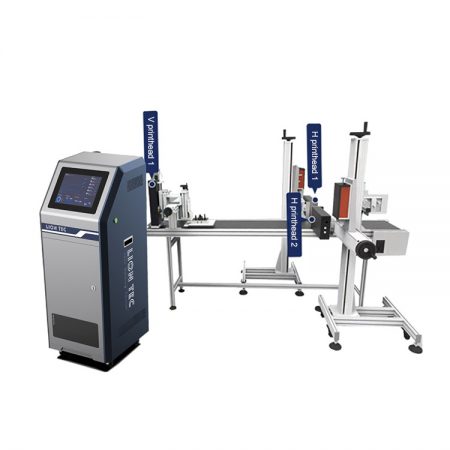

• The printing format of a single printhead is32.4mm，54mm，71.8mm,etc.，and the printingspeed is not affected by the adjustment of thenumber of content ines and height, and a largerprinting format can be obtained through the multi-head seamless splicing technology.
Fast printing speed
• Based on current piezo nozzle technology.the highest ignition frequency can reach 100K,singlehead printing speed can reach more than200 meters/minute under 600*600DPI.
| Model | LT-U1000 | LT-U1800 | LT-U2000 | LT-U3200 | LT-U4000C |
| Printhead type | Industrial piezoelectric printhead | ||||
| Printhead life | 100 billion actuations per printhead | ||||
| Printing height | 32.4mm | 32.4mm | 54.1mm | 72mm | 54.1mm |
| Nozzle QTY | 384 | 384 | 1280 | 1020 | 1280 |
| Ink dot size | 3pl,6pl,9pl | 7pl,14pl,21pl | 7pl,14pl,21pl | 12pl,35pl,50pl | 7pl,14pl,21pl |
| Printing speed (Material/resolution/ environment/platform
and other factors) |
Max. 50 m/min | Max. 100 m/min | Max. 180 m/min | Max. 70 m/min | Max. 50 m/min |
| Physical resolution | Lengthways printing precision300DPI
Crosswise printing precision200-3200DPI |
Lengthways printing precision 300/600DPI
Crosswise printing precision200-3200DPI |
|||
| Ink color | Black/white/yellow/red/blue all single color | CMYK | |||
| Distance from printhead to material | 0.5-5mm （0.5-2mm optimal） | ||||
| Printing content | Multi-language system supports variable and fixed text, numbers, barcode, QR code, electronic regulatory code, traceability code, pictures, time and date, lot numbers, serial numbers, databases, etc. |
||||
| Printing direction | Vertical/Horizontal printing | Vertical printing | |||
| Advantage | 1、Online high precision, high speed printing 2、Exquisite small body big energy 3、UV environmental protection ink | ||||
| Controller | 12.1 inch Industrial HD touch screen, capacitive multi-touch | ||||
| SDK | Provide interface to support second development | ||||
| Data interface | USB2.0/3.0、GigE、RS-232、RS-485 | ||||
| Power requirement | AC220V/50HZ | ||||
| Printer power | Maximum power consumption 200w | ||||
| Ambient temperature | Temperature: 0℃-45℃ (Best 10℃-32℃),
Humidity: 15%-75%RH No condensation |
||||
| IP Grade | IP55 | ||||
| Protection requirements | Be well grounded | ||||
| Weight | 60kg | ||||
| Size | 1390*480*440mm | ||||
